Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Insulator Non Soluble Deposit Density Tester With Microcomputer Control
Insulator Non Soluble Deposit Density Tester With Microcomputer Control Insulator Non Soluble Deposit Density Tester With Microcomputer Control Insulator Non Soluble Deposit Density Tester With Microcomputer Control Insulator Non Soluble Deposit Density Tester With Microcomputer Control Insulator Non Soluble Deposit Density Tester With Microcomputer Control Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Large Image :  Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-HM
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: US $4299.00-$7795.00 /SET
Packaging Details: Packing wooden case or carton
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal
Supply Ability: 1200sets/year
Detailed Product Description
Product Name: Insulator Non-soluble Deposit Density Tester Power: Electronic
Warranty: 1 Year Balance Precision: 0.1mg
Maximum Weighing: 200g Temperature Range: Room Temperature +10℃~250℃
Filtration Flow: L/Min:60 The Maximum Degree Of Vacuum Filtration: MPa:0.098
Single Head Exhaust Air Filtration: L/min:10 Supply Voltage: 220±10%
Ambient Temperature: 5-40℃ Relative Humidity: 85%
High Light:

Insulator Non Soluble Deposit Density Tester

,

Microcomputer Non Soluble Deposit Density Tester

,

Microcomputer Control Insulator Tester

Digital Intelligent Conductivity Insulator Non-soluble Deposit Density Tester

Product introduction

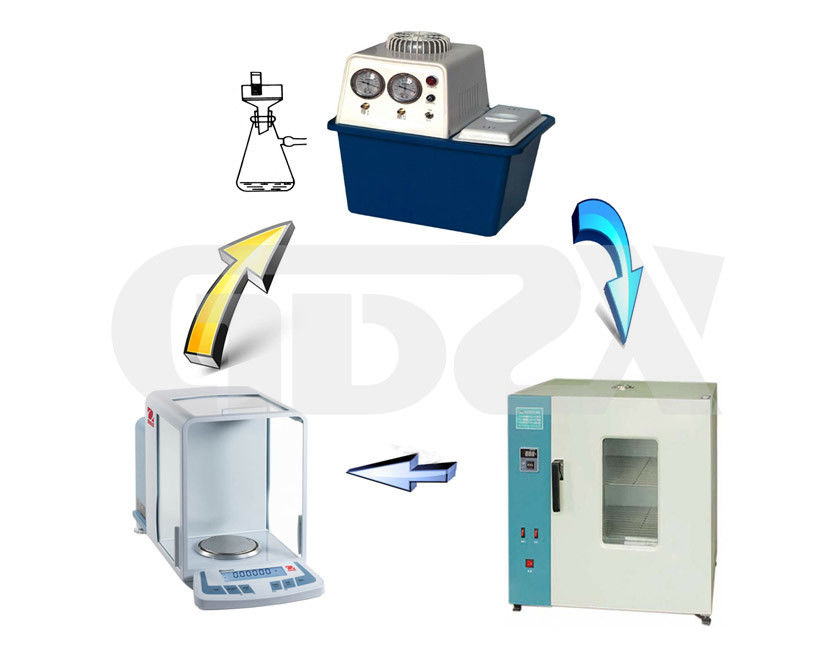

      ZX-HM Insulator Non-soluble deposit density Tester is a complete set of measuring equipment, which contains electronic balance, air blast drying device, vacuum filtration device, and accessories. The whole set of device is simple and accurate.

Insulator Non Soluble Deposit Density Tester With Microcomputer Control 0





Features

1. The vacuum filtering device has the advantages of mature technology, convenient use and high efficiency. It contains a number of taps, can realize a number of filtering process. The use of water circulation device to replace the oil circulation pump make it more convenient with low failure rate
2. The air blast drying device adopts German technology, the air duct is advanced, the fan noise is small, the performance is stable;
3. Microcomputer High precision intelligent control. Once set the temperature, it self judge the heating power and display heating state.
4. Adjustable air inlet for temperature control and gas emissions.
5. digital electronic balance has correction function, self-checking function, and multiple modes


Insulator Non Soluble Deposit Density Tester With Microcomputer Control 1


Technical Indicators


1. Balance precision: 0.1mg
2. Maximum weighing: 200g
3. Temperature range: room temperature +10℃~250℃
4. Temperature resolution: 1℃
5. Temperature fluctuation degree: ±1℃
6. Temperature uniformity: ±1℃
7. Filtration flow: L/Min:60
8. The maximum degree of vacuum filtration: MPa:0.098
9. Single head exhaust air filtration: L/min:10
10. The number of air filtration head: 2 pcs
11. Supply voltage: 220±10%
12. Ambient temperature: 5-40℃
13. Relative humidity: 85%





Insulator Non Soluble Deposit Density Tester With Microcomputer Control 2Insulator Non Soluble Deposit Density Tester With Microcomputer Control 3Insulator Non Soluble Deposit Density Tester With Microcomputer Control 4



Test cases
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 5

Insulator Non Soluble Deposit Density Tester With Microcomputer Control 6Insulator Non Soluble Deposit Density Tester With Microcomputer Control 7Insulator Non Soluble Deposit Density Tester With Microcomputer Control 8
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 9
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 10Insulator Non Soluble Deposit Density Tester With Microcomputer Control 11

Company introduction

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 12
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 13
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 14Insulator Non Soluble Deposit Density Tester With Microcomputer Control 15
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 16Insulator Non Soluble Deposit Density Tester With Microcomputer Control 17
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 18

 Insulator Non Soluble Deposit Density Tester With Microcomputer Control 19
Insulator Non Soluble Deposit Density Tester With Microcomputer Control 20
