ZXDT-20A Anti Interference 20A Ground Continuity Down Lead Conduction Tester

Name: ZXDT-20A Anti Interference 20A Ground Continuity Down Lead Conduction Tester
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZXDT-20A
Price: 3,349.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXDT-20A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US $2459.00-4239.00/SET

Packaging Details: carton or wooden case

Delivery Time: 8-15 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 100 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Ground Continuity Down Lead Conduction Tester, Anti Interference Earth Insulation Tester


Product Name:	Ground Continuity Tester	Warranty:	1 Year
Power Supply:	AC 220V±10V，50Hz±1 Hz	Test Current:	1A,2.5A,5A,10A,20A
Measuring Range:	100μΩ～1Ω (20A); 500μΩ～2Ω (10A); 1mΩ～4Ω (5A); 2mΩ～8Ω (2.5A); 5mΩ～20Ω (1A);	Minimum Resolution:	0.1μΩ
Accuracy:	±(0.5%±2words)	Display:	LCD
Data Storage:	1000 Groups	Ambient Temperature And Relative Humidity:	0℃～40℃; <90%RH,no Condensation
Overall Dimensions:	400 * 225 * 350 (mm)	Weight:	Host Machine: 15.1KG, Wire Box: 5.75KG

Product Name:	Ground Continuity Tester
Warranty:	1 Year
Power Supply:	AC 220V±10V，50Hz±1 Hz
Test Current:	1A,2.5A,5A,10A,20A
Measuring Range:	100μΩ～1Ω (20A); 500μΩ～2Ω (10A); 1mΩ～4Ω (5A); 2mΩ～8Ω (2.5A); 5mΩ～20Ω (1A);
Minimum Resolution:	0.1μΩ
Accuracy:	±(0.5%±2words)
Display:	LCD
Data Storage:	1000 Groups
Ambient Temperature And Relative Humidity:	0℃～40℃; <90%RH,no Condensation
Overall Dimensions:	400 * 225 * 350 (mm)
Weight:	Host Machine: 15.1KG, Wire Box: 5.75KG

Product Description

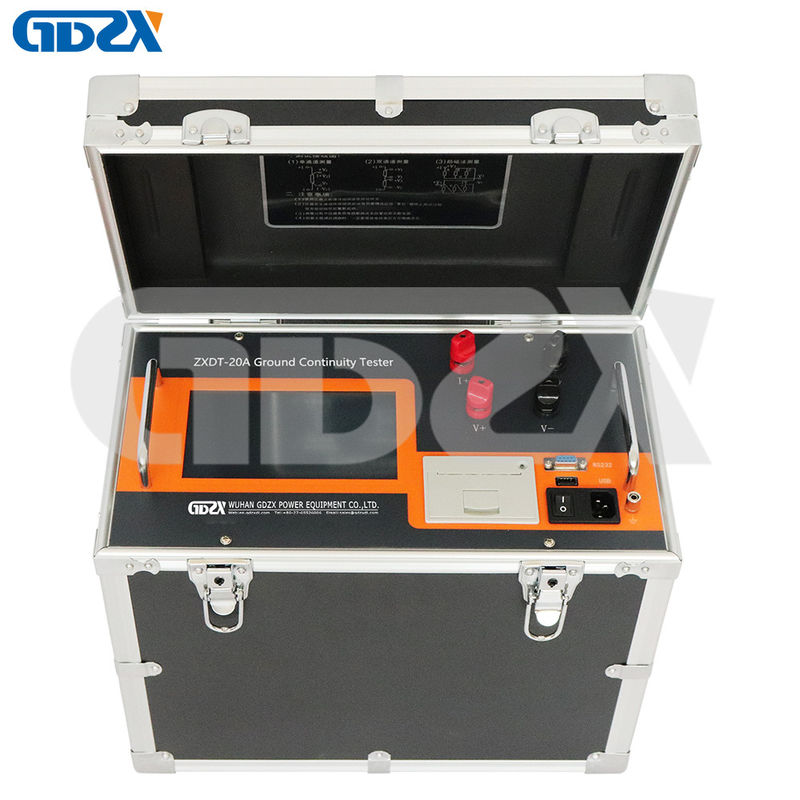

ZXDT-20A Ground Continuity Tester

Product Description

Introduction

ZXDT-20A ground lead down conduction tester is a portable tester with high degree of automation developed by our company, which is used to measure the conduction resistance between the ground lead down of each power equipment in the substation. The instrument is controlled by high-performance single chip microcomputer, which can realize the intelligent test process, has small size, easy to carry, simple operation, high precision, fast test speed, good repeatability, intuitive reading, and is an ideal special instrument in line with the requirements of the regulations.

Features

1, The whole machine is controlled by high-speed single chip microcomputer, with high degree of automation and easy operation.
2, the instrument adopts the new power supply technology, the current range is more, the measuring range is wide.
3, intelligent power management technology, the instrument always works in the minimum power state, effectively reduce the internal heat of the instrument, save energy.
4,7 inch high brightness touch color LCD, clear display under strong light, full touch screen operation, Free switching between Chinese and English.
5, the instrument comes with perpetual calendar clock and power off storage, can store 1000 groups of test data, can be consulted at any time.
6, the instrument is equipped with RS232 and USB interface, and computer communication and U disk storage.
7, built-in panel micro printer, can print the measurement results.

Technical Indicators

Item	Technical indicators and parameters	Remark
Test current	1A,2.5A,5A,10A,20A
Measuring range	100μΩ～1Ω (20A); 500μΩ～2Ω (10A); 1mΩ～4Ω (5A); 2mΩ～8Ω (2.5A); 5mΩ～20Ω (1A);
Minimum resolution	0.1μΩ
Accuracy	±(0.5%±2 words)
Display	LCD	The effective number of resistance display is 4 digits
Data storage	1000 groups
Work environment	Ambient temperature: 0℃～40℃ Relative humidity:<90%RH,no condensation
Power supply	AC 220V±10V,50Hz±1 Hz	fuse 5A
Power waste	500W
Overall dimensions	400225350(mm)
Weight	Host machine: 15.1KG, Wire box: 5.75KG

ZXDT-20A Anti Interference 20A Ground Continuity Down Lead Conduction Tester 1

Test cases

Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
